Home / Products / Vincula Steel cable / Diver cable Ties- L Type Uncoated Vinculis
Vincula Steel cable

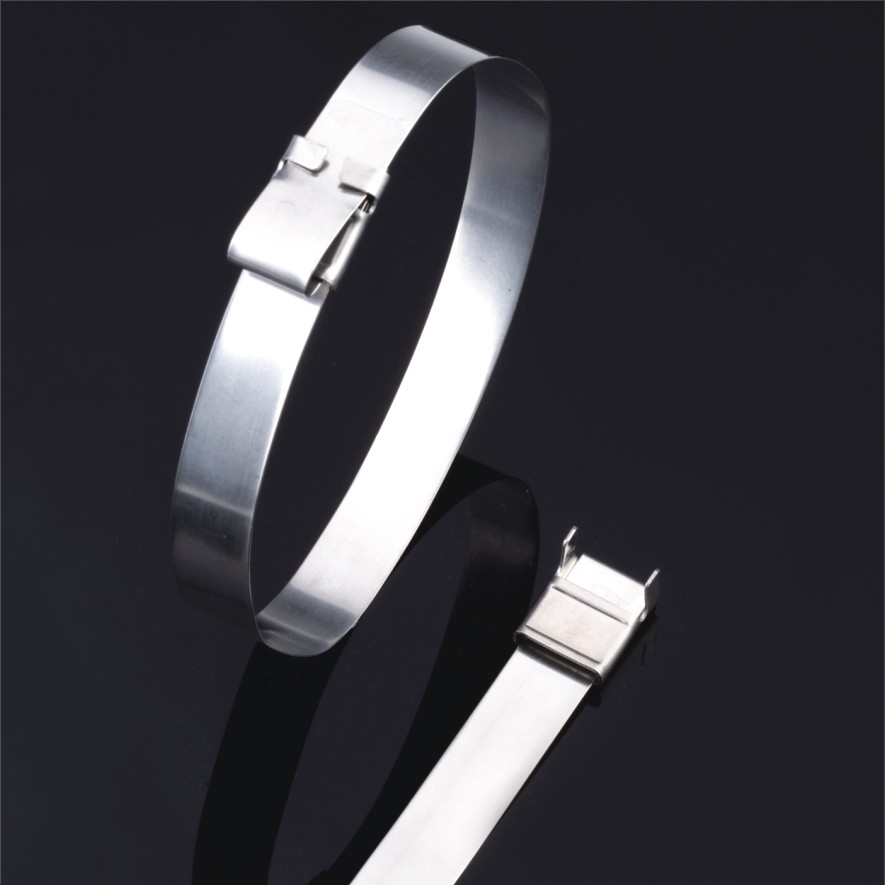

Diver cable Ties- L Type Uncoated Vinculis

Technical Information
Materia: Steel Grade 304 vel 316, Galvanized Steel
Laborans Temp.: -80°C ad 538°C
Description:
Flammability: Fireproof
Alia Substantia: UV repugnans.

CONTACTUM NOS
  • Diver cable Ties- L Type Uncoated Vinculis
PRAEVIA:Diver cable Ties- L Type PVC Coated TiesSEQUENS:Diver cable Ties- L Type Ball-sursum Polyester Coated Vinculis
Parametrum technicum
Item No. Latitudo Longitudo Crassitudo Max.Bundle Dia. Min.Bundle Dia. Min.Tensile virtus Commendatur
InstallationTool
mm digitis mm digitis mm digitis mm digitis mm digitis N libras *
JZLS-10*300 10 0.39 300 11.81 0.30 0.012 90 3.54 19.1 0.75 2800 630 DQH

DQL

LQA

LQA-S

LQD

LQD-S
JZLS-10*400 400 15.75 120 4.72
JZLS-10*500 500 19.69 150 5.91
JZLS-10*600 600 23.62 185 7.28
JZLS-10*700 700 27.56 215 8.46
JZLS-10*800 800 31.50 250 9.84
JZLS-10*1000 1000 39.37 310 12.20
JZLS-12*300 12 0.47 300 11.81 0.35 0.014 90 3.54 25.4 1 3115 700 DOH

DQL

LQA

LQA-S
LOD

LQD-S
JZLS-12*400 400 15.75 120 4.72
JZLS-12*500 500 19.69 150 5.91
JZLS-12*600 600 23.62 185 7.28
JZLS-12*700 700 27.56 215 8.46
JZLS-12*800 800 31.50 250 9.84
JZLS-12*1000 1000 39.37 310 12.20
JZLS-15*400 14.8 0.58 400 15.75 0.35 0.014 120 4.72 25.4 1 4100 920 DQH
DQL
LQA
LQA-S
LQD
LQD-S
JZLS-15*500 500 19.69 150 5.91
JZLS-15*600 600 23.62 185 7.28
JZLS-15*700 700 27.56 215 8.46
JZLS-15*800 800 31.50 250 9.84
JZLS-15*1000 1000 39.37 310 12.20
JZLS-19*400 19 0.75 400 15.75 0.40 0.016 120 4.72 31.8 1.25 5000 1125 DQH

DQL
JZLS-19*500 500 19.69 150 5.91
JZLS-19*600 600 23.62 185 7.28
JZLS-19*700 700 27.56 215 8.46
JZLS-19*800 800 31.50 250 9.84
JZLS-19*900 900 35.43 280 11.02
JZLS-19*1000 1000 39.37 310 12.20
JZLS-19*1200 1200 47.24 375 14.76
JZLS-19*1400 1400 55.12 440 17.32
- Aliae longitudinis in promptu sunt, contactus FENGFAN servitii emptoris.
- Ad informationem de instrumentis institutionis referuntur ad tools paginas manus.
- Quaeso addere materiam gradus in fine item numerus.
