Nylon cable Ties

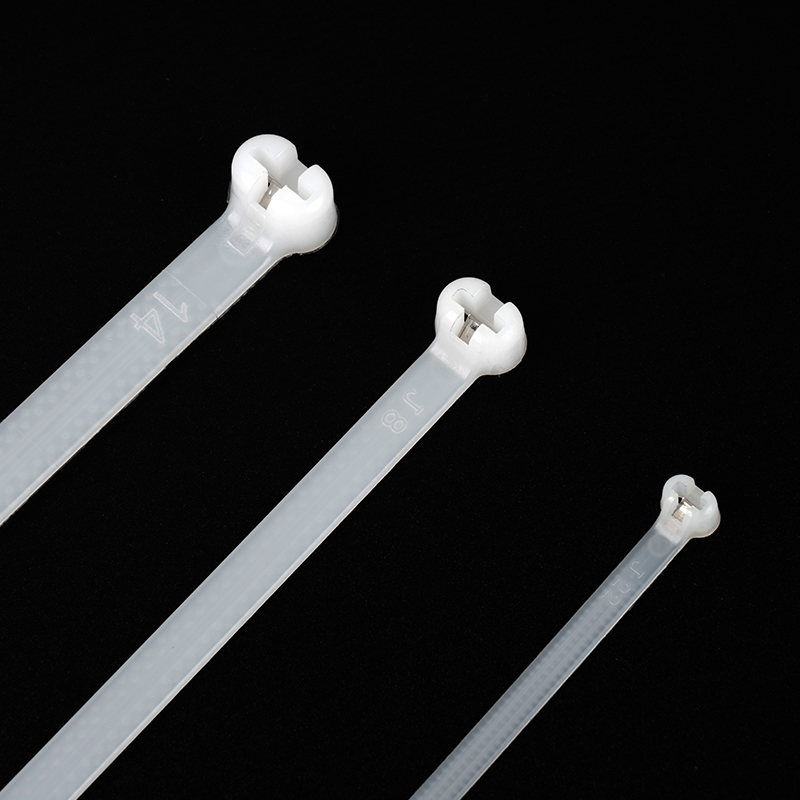

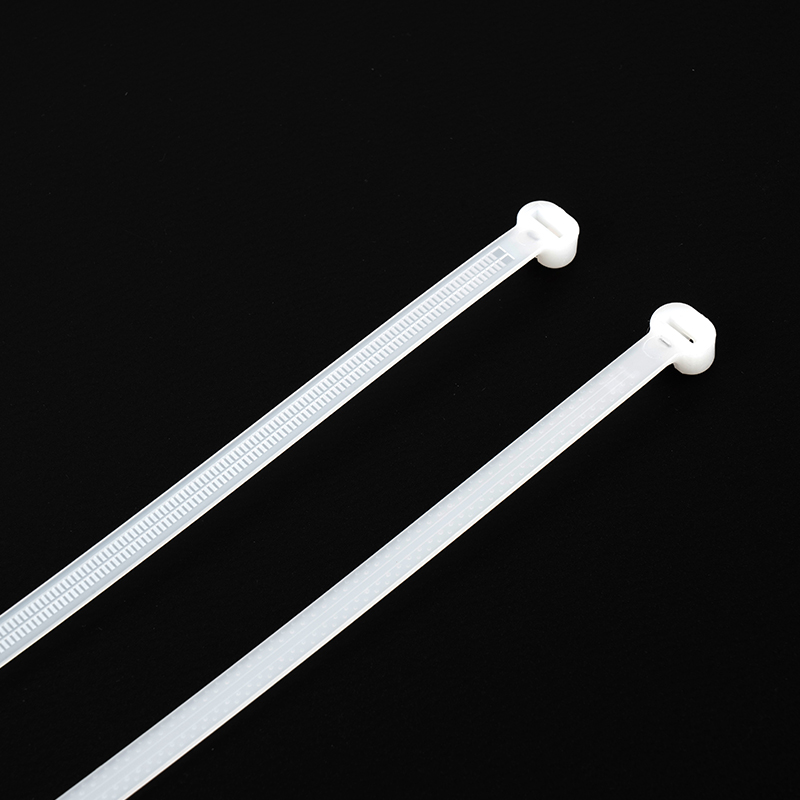

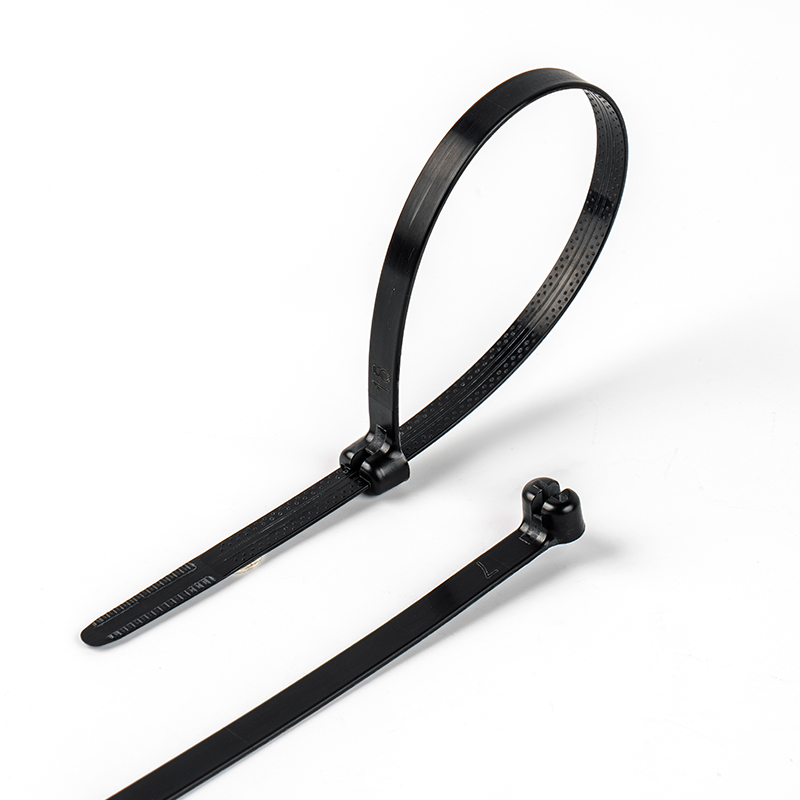

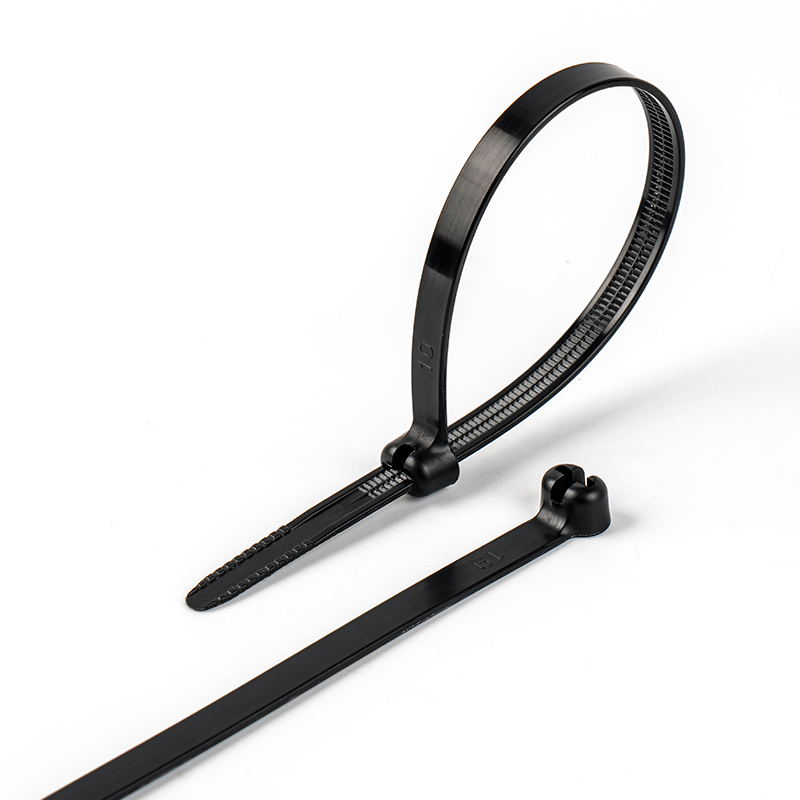

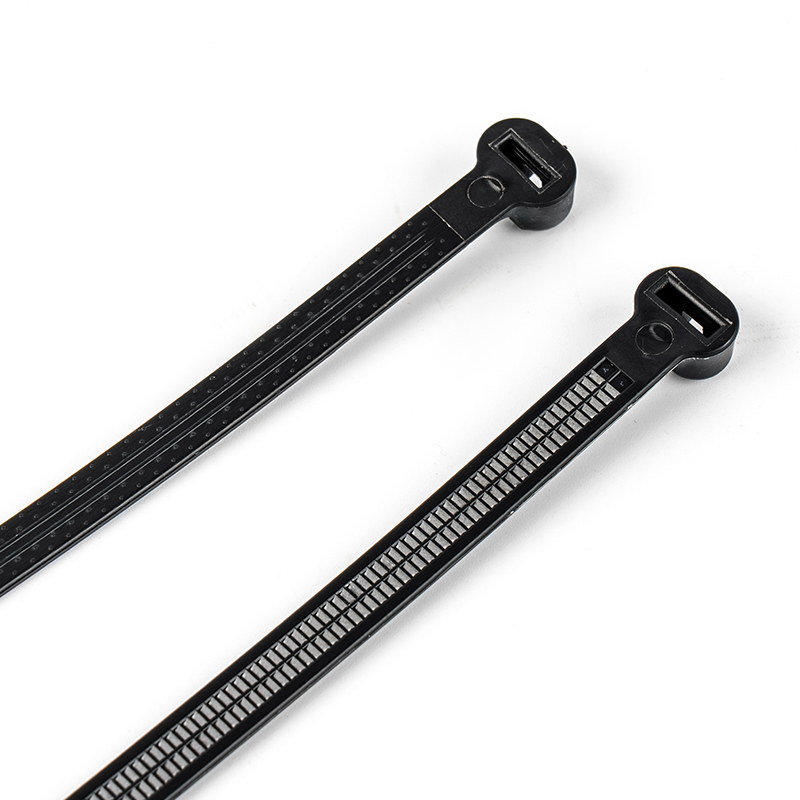

Nylon Cable Ties- Barb-lock Type

Fengfan BarbLock

Fengfan prima societas est, cuius BarbLock Nylon Cable Ties productionem massae latae sunt et patentes consecuti sunt.

Fengfan stirpe producta, urgente clienti mandatis.

Machina Fengfan auto-machinam ad magnam productionem pertinent.

Fengfan BarbLock productum qualitas stabilis habet, ad postulationem emptoris occurrens.

Fengfan potest esse clientibus OEM, qui canales totius mundi distributionem professionalium habent.

Technical Information

Materialien: Nylon 66

Materia Obfirmo Barb: Diver Grade CCCIV.

Temperature Range: -40℃to 85℃

Color: Natura vel Nigrum

Flammabilitas: UL94 V-2

Aliae proprietates: Halogen  Free

Productum Feature

Immaculata ferrum spiculum praebet congruentiam observantiam et firmitatem et infinitam accommodationem per totum fasciculum range.

Maximum robur et humilis filum vis

Lorum corpus stippletum impedit motum lateralem in fasciculo.

Cacumen curvum facile est e superficiebus planis colligere et citius initialem filum ad celeritatis institutionem concedit.

Excelsa ansa Fortitudo industriam signa excedit.

Varietas materiae praesto est applicationibus specificis.

Ad amet vel usum

Praesto Special Requirements

Flamma retardat(UL94 V-0)

UV repugnans, idealis ad usum velitis cum solis solis sortibus.

Calor stabilitur (usque ad 125℃). Specimen pro ambitibus in altum temperaturis.

Specimen ambitus postulat flammabilitatem humilem et fumum humilem, ut vecturae publicae, cuniculos, etc.

CONTACTUM NOS
  • Nylon Cable Ties- Barb-lock Type
  • Nylon Cable Ties- Barb-lock Type
  • Nylon Cable Ties- Barb-lock Type
  • Nylon Cable Ties- Barb-lock Type
  • Nylon Cable Ties- Barb-lock Type
  • Nylon Cable Ties- Barb-lock Type
PRAEVIA:Nylon cable Ties- sui-sursum TypeSEQUENS:Nulla sequens commentatio!
Parametrum technicum
ltem No. Latitudo Longitudo Crassitudo Max.Bundle Dia. Min. Fasciculus Diae. Min. distrahentes Fortitudo Manus Instrumentum
mm digitis mm digitis mm digitis mm digitis mm digitis N libras *
NZQOD-2.4*102 2.4 0.094 102 4.02 0.9 0.035 23 0.91 2 0.079 80 18 LS-519
NZQ0D-2.4*160 2.4 0.094 160 6.3 1.2 0.047 42 1.65 2 0.079 80 18
NZQ0D-2.4*201 2.4 0.094 201 7.91 1.2 0.047 51 2.01 2 0.079 80 18
NZQ0D-3*100 3 0.118 100 3.94 1.2 0.047 22 0.87 2 0.079 80 18
NZQ0D-3.6*15 3.6 0.142 155 6.1 1.1 0.043 35 1.38 3 0.118 178 40
NZQ0D-3.6*203 3.6 0.142 203 7.99 1.1 0.043 51 2.01 3 0.118 178 40
NZQ0D-3.6*287 3.6 0.142 287 11.3 1.3 0.051 80 3.19 3 0.118 178 40
NZQ0D-3.6*368 3.6 0.142 368 14.49 1.3 0.051 104 4.09 3 0.118 178 40
NZQ0D-4*150 4 0.157 150 5.91 1.3 0.051 35 1.38 3 0.118 178 40
NZQ0D-4*200 4 0.157 200 7.87 1.3 0.051 50 1.97 3 0.118 178 40
NZQOD-4.7*186 4.7 0.185 186 7.32 1.15 0.045 45 1.77 3.5 0.138 222 50
NZQ0D-4.7*203 4.7 0.185 203 7.99 1.15 0.045 50 1.97 3.5 0.138 222 50
NZQ0D-4.8*250 4.8 0.189 250 9.84 1.3 0.051 65 2.56 3.5 0.138 222 50
NZQ0D-4.8*305 4.8 0.189 305 12.01 1.25 0.049 82 3.23 3.5 0.138 222 50
NZQ0D-4.8*361 4.8 0.189 361 14.21 1.3 0.051 100 3.94 3.5 0.138 222 50
NZQ0D-4.8*376 4.8 0.189 376 14.8 1.45 0.057 105 4.13 3.5 0.138 222 50
NZQ0D-7*221 7 0.276 221 8.7 1.7 0.067 51 2.01 6 0.236 534 120
NZQ0D-7*300 7 0.276 300 11.81 1.7 0.067 80 3.15 6 0.236 534 120
NZQ0D-7*378 7 0.276 378 14.88 1.7 0.067 102 4.02 6 0.236 534 120
NZQ0D-7*538 7 0.276 538 21.18 1.7 0.067 152 5.98 6 0.236 534 120
NZQ0D-7*620 7 0.276 620 24.41 1.7 0.067 180 7.09 6 0.236 534 120
NZQ0D-7*699 7 0.276 699 27.52 1.7 0.067 203 7.99 6 0.236 534 120
NZQ0D-7*780 7 0.276 780 30.71 1.7 0.067 256 10.08 6 0.236 534 120
NZQ0C-8*240 8 0.315 240 9.45 1.6 0.063 57 2.24 9 0.354 450 100
NZQ0D-8*300 8 0.315 300 11.81 1.7 0.067 77 3.03 9 0.354 534 120
NZQ0D-8*350 8 0.315 350 13.78 1.7 0.067 97 3.82 9 0.354 534 120
NZQ0D-8*400 8 0.315 400 15.75 1.65 0.065 108 4.25 9 0.354 534 120
NZQ0D-8*460 8 0.315 460 18.11 1.7 0.067 127 5 9 0.354 534 120
NZQ0D-10*300 10 0.394 300 11.81 1.6 0.063 77 3.03 14 0.551 550 124
NZQ0D-10*350 10 0.394 350 13.78 1.6 0.063 97 3.82 14 0.551 550 124
NZQ0D-10*400 10 0.394 400 15.75 1.6 0.063 109 4.29 14 0.551 550 124
NZQ0D-10*450 10 0.394 450 17.72 1.6 0.063 124 4.88 14 0.551 550 124
NZQ0D-10*600 10 0.394 600 23.62 1.6 0.063 197 7.76 14 0.551 550 124

- Aliae longitudinis in promptu sunt, pete contactus FENGFAN Customer Service.
- Ad informationem instrumentorum institutionis referuntur ad paginas Instrumentorum manus.
- Commendatur maximam oneraturam continuam ad 12.7mm Strapsis90N per Strap.
- Optimus Proventus suggessit spatiorum est 35 ad 40cm.
